Topic: How to disable SATA Hot-Swap on TRX40 Creator bios
Posted By: ShK
Subject: How to disable SATA Hot-Swap on TRX40 Creator bios
Date Posted: 21 Jan 2020 at 8:26pm
I like to prevent internal SATA hard drives to appear as removable in Windows 10 Pro (ver10.0.19546). From where I could change Hot-Swap settings on the TRX40 Creator bios (ver1.30 2020/1/8)?

I would not like to fork the Windows registry for this.



Replies:
Posted By: Ray62
Date Posted: 22 Jan 2020 at 5:35am

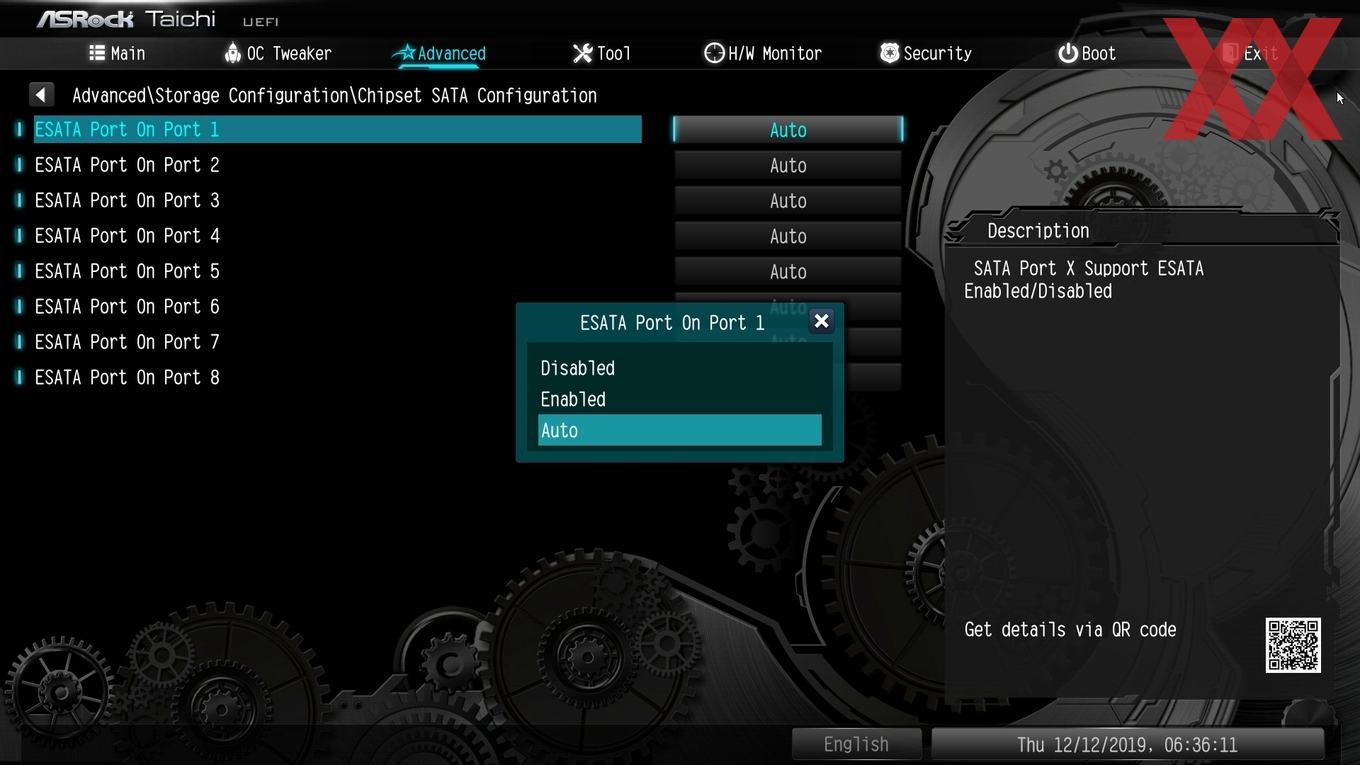

Probably via ESATA setting like in the TRX40 Taichi for each drive under
Advanced\Storage Configuration\Chipset SATA Configuration:



-------------
Asrock Fatal1ty X370 Professional Gaming Offline
Under test:
MSI X570_MEG_ACE | AMD Ryzen 9 3900X | Scythe Mugen5 | 2x16GB F4-3200C14D-32GTZ@3466 | ASUS GeForce GTX 1080 Ti FE


Posted By: ShK
Date Posted: 22 Jan 2020 at 5:40am
Unfortunately that setting only affects to the motherboard SATA header, that is it disabled, enabled or does it auto detect the drive.

Menu does not allow to select if connected drive is seen as hot-swappable or not.


Posted By: Ray62
Date Posted: 22 Jan 2020 at 6:53am
In the bios of the Asrock Fatal1ty X370 PG there is/was a global SATA Hot Plug switch under Advanced\Storage Configuration.

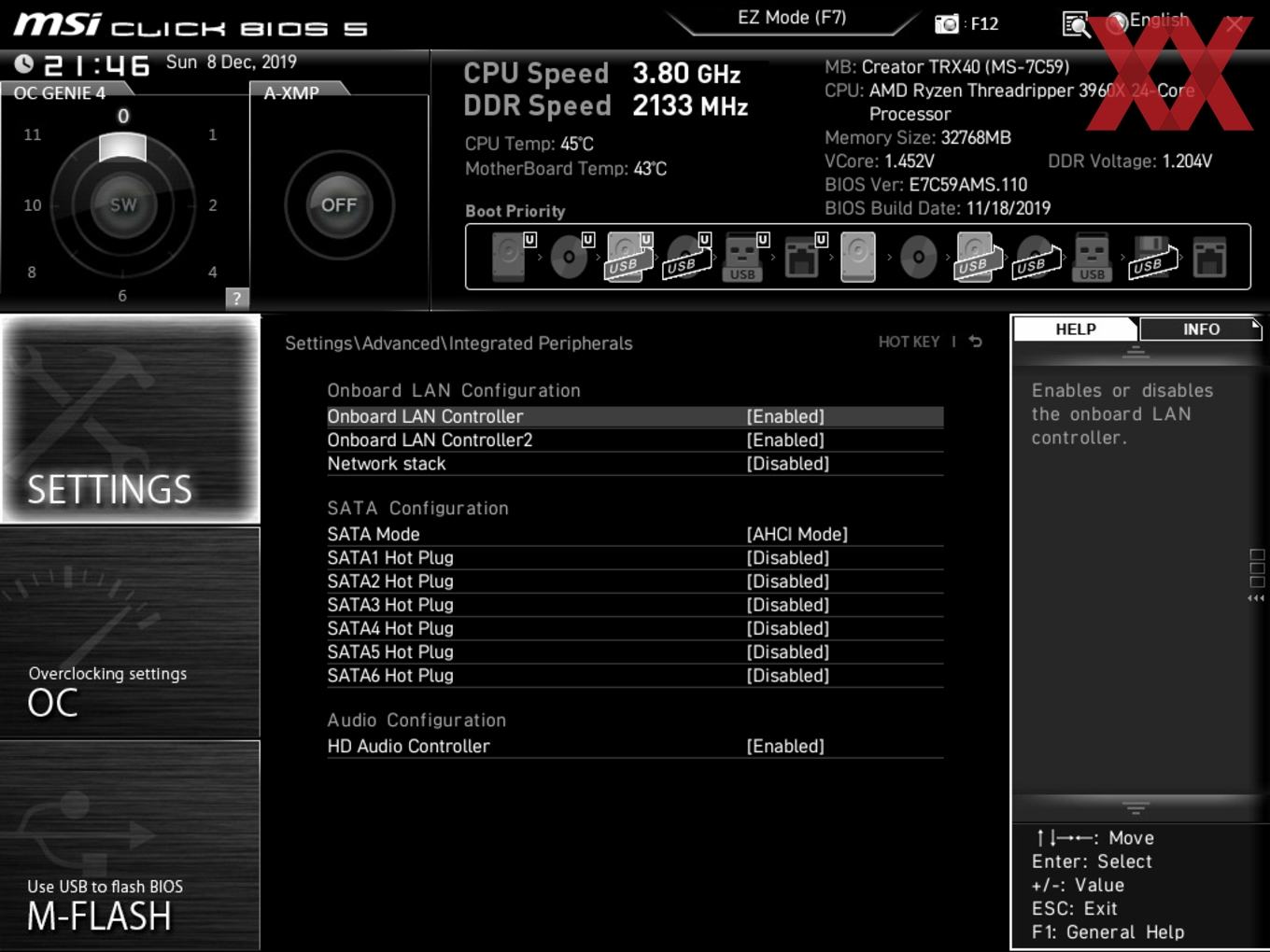

And in the bios of the MSI Creator TRX40 you can set hot plug for each port:

Also my MSI X570 MEG Ace has these options.

I don't know why Asrock does not offer the same.

I would create a ticket with a change request...

-------------
Asrock Fatal1ty X370 Professional Gaming Offline
Under test:
MSI X570_MEG_ACE | AMD Ryzen 9 3900X | Scythe Mugen5 | 2x16GB F4-3200C14D-32GTZ@3466 | ASUS GeForce GTX 1080 Ti FE


Posted By: ShK
Date Posted: 22 Jan 2020 at 7:03am

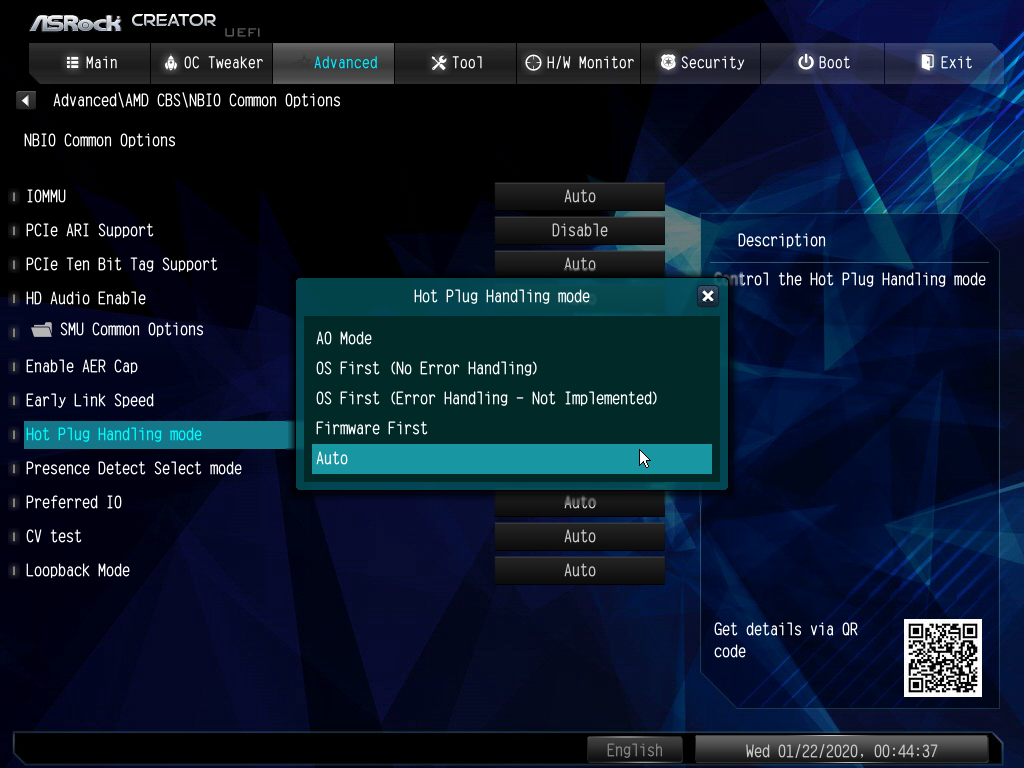

Thanks, exactly those I tried to find but no luck. This was the closest I found, but TBH I have no idea what those means:

Hot Plug Handling mode:
AO Mode
OS First (No Error Handling)
OS First (Error Handling - Not Implemented)
Firmware First
Auto





Posted By: Ray62
Date Posted: 22 Jan 2020 at 7:17am
Hmm, this you have to test.
But it is global.

Maybe it is a little bit hidden: Can you check on each connected drive in the storage menu, if there is an option popup?

That's the way of an Asrock X470 Taichi bios, i read in a german forum when searching "asrock trx40 hot plug".


-------------
Asrock Fatal1ty X370 Professional Gaming Offline
Under test:
MSI X570_MEG_ACE | AMD Ryzen 9 3900X | Scythe Mugen5 | 2x16GB F4-3200C14D-32GTZ@3466 | ASUS GeForce GTX 1080 Ti FE


Posted By: ShK
Date Posted: 23 Jan 2020 at 5:06am
None of those 'Advanced\AMD CBS\NBIO Common Options' options didn't prevent internal SATA hard drives to appear as removable. I don't even know if they're related in any way to SATA Hot Plug.

I can see drives in Storage Device(s) List, but there is no way to access them by mouse or keyboard.



Posted By: ShK
Date Posted: 24 Jan 2020 at 3:54am
Originally posted by Ray62 Ray62 wrote:

I would create a ticket with a change request...

How to do this and where?


Posted By: Ray62
Date Posted: 24 Jan 2020 at 2:34pm
Originally posted by ShK ShK wrote:

Originally posted by Ray62 Ray62 wrote:

I would create a ticket with a change request...

How to do this and where?

https://www.asrock.com/support/index.asp


-------------
Asrock Fatal1ty X370 Professional Gaming Offline
Under test:
MSI X570_MEG_ACE | AMD Ryzen 9 3900X | Scythe Mugen5 | 2x16GB F4-3200C14D-32GTZ@3466 | ASUS GeForce GTX 1080 Ti FE


Posted By: ShK
Date Posted: 24 Jan 2020 at 4:18pm
Thanks, ticket is now done to the "ASRock Technical Support Division".



Posted By: ShK
Date Posted: 05 Feb 2020 at 1:04pm
I got an answer from the ASRock Technical Support Division:

Quote Dear ShK,

Thank you for choosing ASRock and contact us.

Today we have used TRX40 Creator to test, but we didn't sea the same behavior as you said.

We connect two SATA disk to the MB and boot into OS with default BIOS setting, the SATA devices doesn't appear in the Removable Hardware list.

For this case, we would suggest loading the BIOS to default setting by pressing [F9] and then press [F10] to save and exit to try.

Thank you,

Best wishes,

ASRock TSD


After pressing [F9] and then pressing [F10] to save and exit, my Crucial M4 2.5" 512GB SATA III MLC Internal Solid State Drive (SSD) CT512M4SSD2 still appears as removable drive on Microsoft Windows 10 64-bit.

btw, TRX40 Creator bios 1.30 beta has a bug, when you select "Discard Changes and Exit", bios will crash.


Posted By: ShK
Date Posted: 05 Feb 2020 at 7:08pm
A little update. ASRock TSD asked me to test with the another brand internal SSD drive and I added all internal SSD drives which I could find. Then I did again that F9+F10 trick in BIOS and now all started to work as should. Any of installed internal drives does not anymore appear as removable drive! After I removed unneeded drives, original drive still works as it should and Windows 10 does not detect it anymore as removable drive. So all good now! Excellent!


Posted By: ShK
Date Posted: 07 Feb 2020 at 3:26pm
Originally posted by ShK ShK wrote:

btw, TRX40 Creator bios 1.30 beta has a bug, when you select "Discard Changes and Exit", bios will crash.

ASRock engineer team has fixed now this "Discard Changes and Exit" issue from the BIOS. They also fixed another issue which I reported, "RGB LED On/Off" -option did show wrong status in the BIOS. So I can confirm that all of these are now fixed in the BIOS version L1.42 which ASRock TSD offered to me to test.
