Ram Overclock (XMP) doesn't work properly

 Post Reply Post Reply
Luca133 View Drop Down

Joined: 02 Jul 2022
Status: Offline
Points: 20
Post Options Post Options   Thanks (0) Thanks(0)   Quote Luca133 Quote  Post ReplyReply Direct Link To This Post Topic: Ram Overclock (XMP) doesn't work properly
    Posted: 02 Jul 2022 at 8:15pm
My ram OC (XMP) doesn't work like it's supposed to do because i have two (XMP) options one is 3000Mhz and one is 3200Mhz
The 3000Mhz options works but only after 2 or 3 restarts and the games keep crashing
The 3200Mhz doesn't work at all (i get some beeps and then they go back to 2400mhz)
Currently im using 2400Mhz so i don't get crashes
CPU: AMD Ryzen 5 1600 (AF)
GPU: AMD Radeon (TM) R9 380 (GIGABYTE Technology)
RAM: HyperX Predator DDDR4 16GB 3200Mhz CL16 (2x8GB) 1.35V
Motherboard: ASRock B450M Steel Legend (Bios P2.90) [There are some bios updates on the site but i don't think i need them]
PSU: 750W at +12V is rated for 80V and at 3.3V and 5V is rated for 28A

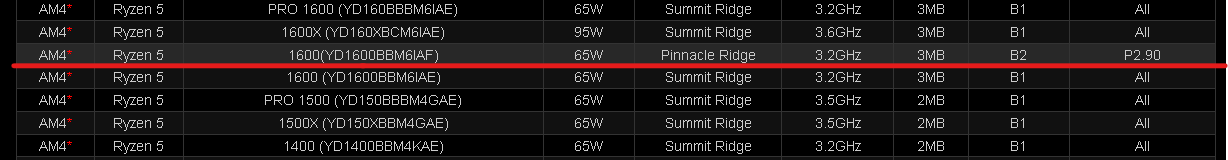

I checked on the Motherboard site if the actual RAM is compatibile with the CPU at 3200mhz and it looks like it is compatibile at that speed
And here is the original motherboard site: steel legend/#Support
Back to Top
threadzipper1957 View Drop Down
Senior Member
Senior Member

Joined: 05 Mar 2022
Status: Offline
Points: 9335
Post Options Post Options   Thanks (0) Thanks(0)   Quote threadzipper1957 Quote  Post ReplyReply Direct Link To This Post Posted: 22 Jul 2022 at 10:14pm
Any memory QVL is basically unreliable (for all brands), As far as I know, only Samsung and Crucial are true manufacturers, the rest are assemblers, who buy chips from Samsung, Micron, Hynix, Nanya, Elpida Spectek anbd other chip manufaturers.
Since introduction of DDR4 there is a shortage of chips, so maybe ASRock test with a kit with 512MB Hynix chips, abd a week later the same kit contains 1GB chips of a different brand.
Kingston is also an assembler, and this would not be an issue, if manufacturers would not keep reusing the same partnumber, it's a silicon lottery
The memory controllwr is integrated in the CPU and runs optimal at 2667MHz,
Probably lots of people will comment, but the overal performance of the complete system, will not increase above 2666MHz, only a synthetic memory benchmark will show an increase
When you still want to overclock, google for Ryzen DRAM Calculator, and watch the youtube tutorials, they are quite helpful.
The general idea is to use a freeware tool like Thaipoon burner, to export the content of the memories SPD chip as an HTML file.
Import this HTML file in Ryzen DRAM Calculator, who will find optimal values.
When you have a FAT formatted USB stick, you can make BIOS screenshots with f12, and use these as a guide to find the apropriate values.
Kind Regards
