How to disable SATA Hot-Swap on TRX40 Creator bios
 Post Reply Post Reply Page  12>
Author
Message Reverse Sort Order
  Topic Search Topic Search  Topic Options Topic Options
ShK View Drop Down
Newbie
Newbie


Joined: 21 Jan 2020
Status: Offline
Points: 52 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ShK Quote  Post ReplyReply Direct Link To This Post Topic: How to disable SATA Hot-Swap on TRX40 Creator bios
    Posted: 07 Feb 2020 at 3:26pm
Originally posted by ShK ShK wrote:

btw, TRX40 Creator bios 1.30 beta has a bug, when you select "Discard Changes and Exit", bios will crash.

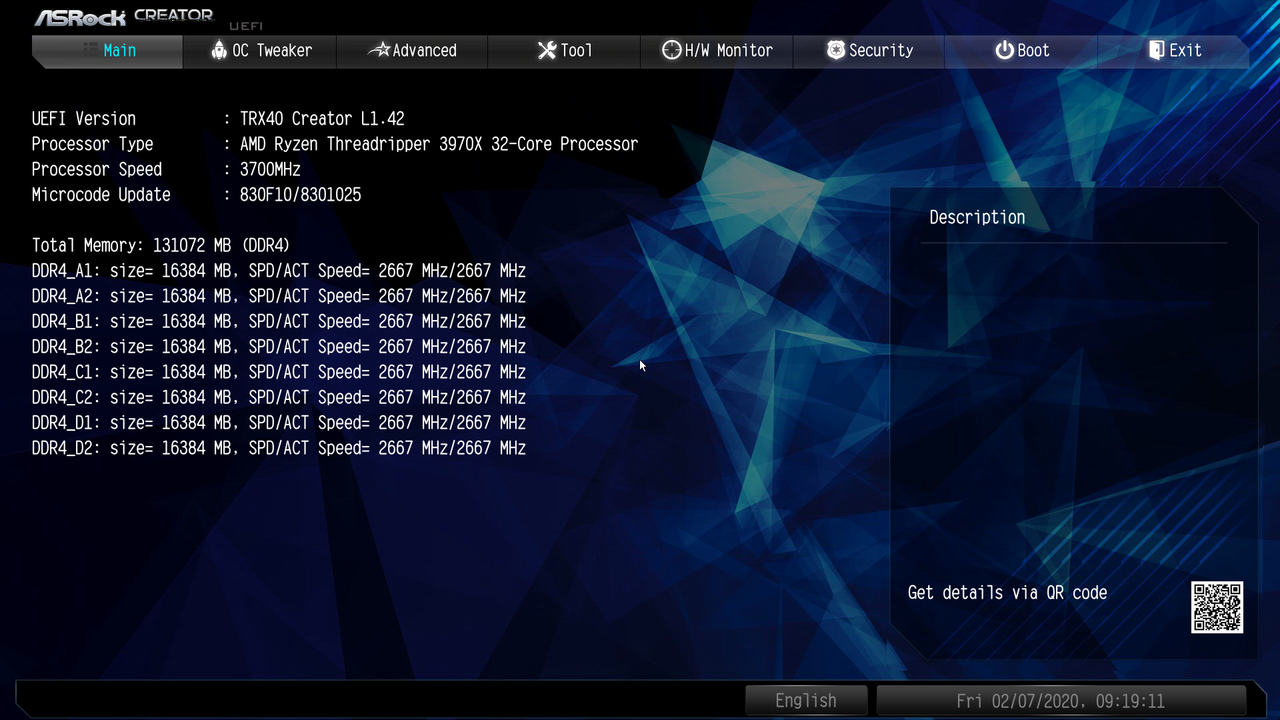

ASRock engineer team has fixed now this "Discard Changes and Exit" issue from the BIOS. They also fixed another issue which I reported, "RGB LED On/Off" -option did show wrong status in the BIOS. So I can confirm that all of these are now fixed in the BIOS version L1.42 which ASRock TSD offered to me to test.
Back to Top
ShK View Drop Down
Newbie
Newbie


Joined: 21 Jan 2020
Status: Offline
Points: 52 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ShK Quote  Post ReplyReply Direct Link To This Post Posted: 05 Feb 2020 at 7:08pm
A little update. ASRock TSD asked me to test with the another brand internal SSD drive and I added all internal SSD drives which I could find. Then I did again that F9+F10 trick in BIOS and now all started to work as should. Any of installed internal drives does not anymore appear as removable drive! After I removed unneeded drives, original drive still works as it should and Windows 10 does not detect it anymore as removable drive. So all good now! Excellent!
Back to Top
ShK View Drop Down
Newbie
Newbie


Joined: 21 Jan 2020
Status: Offline
Points: 52 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ShK Quote  Post ReplyReply Direct Link To This Post Posted: 05 Feb 2020 at 1:04pm
I got an answer from the ASRock Technical Support Division:

Quote Dear ShK,

Thank you for choosing ASRock and contact us.

Today we have used TRX40 Creator to test, but we didn't sea the same behavior as you said.

We connect two SATA disk to the MB and boot into OS with default BIOS setting, the SATA devices doesn't appear in the Removable Hardware list.

For this case, we would suggest loading the BIOS to default setting by pressing [F9] and then press [F10] to save and exit to try.

Thank you,

Best wishes,

ASRock TSD


After pressing [F9] and then pressing [F10] to save and exit, my Crucial M4 2.5" 512GB SATA III MLC Internal Solid State Drive (SSD) CT512M4SSD2 still appears as removable drive on Microsoft Windows 10 64-bit.

btw, TRX40 Creator bios 1.30 beta has a bug, when you select "Discard Changes and Exit", bios will crash.
Back to Top
ShK View Drop Down
Newbie
Newbie


Joined: 21 Jan 2020
Status: Offline
Points: 52 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ShK Quote  Post ReplyReply Direct Link To This Post Posted: 24 Jan 2020 at 4:18pm
Thanks, ticket is now done to the "ASRock Technical Support Division".

Back to Top
Ray62 View Drop Down
Groupie
Groupie
Avatar

Joined: 01 Jul 2018
Location: Germany, Berlin
Status: Offline
Points: 706 		Post Options Post Options   Thanks (1) Thanks(1)   Quote Ray62 Quote  Post ReplyReply Direct Link To This Post Posted: 24 Jan 2020 at 2:34pm
Originally posted by ShK ShK wrote:

Originally posted by Ray62 Ray62 wrote:

I would create a ticket with a change request...

How to do this and where?

https://www.asrock.com/support/index.asp
Asrock Fatal1ty X370 Professional Gaming Offline
Under test:
MSI X570_MEG_ACE | AMD Ryzen 9 3900X | Scythe Mugen5 | 2x16GB F4-3200C14D-32GTZ@3466 | ASUS GeForce GTX 1080 Ti FE
Back to Top
ShK View Drop Down
Newbie
Newbie


Joined: 21 Jan 2020
Status: Offline
Points: 52 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ShK Quote  Post ReplyReply Direct Link To This Post Posted: 24 Jan 2020 at 3:54am
Originally posted by Ray62 Ray62 wrote:

I would create a ticket with a change request...

How to do this and where?
Back to Top
ShK View Drop Down
Newbie
Newbie


Joined: 21 Jan 2020
Status: Offline
Points: 52 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ShK Quote  Post ReplyReply Direct Link To This Post Posted: 23 Jan 2020 at 5:06am
None of those 'Advanced\AMD CBS\NBIO Common Options' options didn't prevent internal SATA hard drives to appear as removable. I don't even know if they're related in any way to SATA Hot Plug.

I can see drives in Storage Device(s) List, but there is no way to access them by mouse or keyboard.
Back to Top
Ray62 View Drop Down
Groupie
Groupie
Avatar

Joined: 01 Jul 2018
Location: Germany, Berlin
Status: Offline
Points: 706 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Ray62 Quote  Post ReplyReply Direct Link To This Post Posted: 22 Jan 2020 at 7:17am
Hmm, this you have to test.
But it is global.

Maybe it is a little bit hidden: Can you check on each connected drive in the storage menu, if there is an option popup?

That's the way of an Asrock X470 Taichi bios, i read in a german forum when searching "asrock trx40 hot plug".
Asrock Fatal1ty X370 Professional Gaming Offline
Under test:
MSI X570_MEG_ACE | AMD Ryzen 9 3900X | Scythe Mugen5 | 2x16GB F4-3200C14D-32GTZ@3466 | ASUS GeForce GTX 1080 Ti FE
Back to Top
ShK View Drop Down
Newbie
Newbie


Joined: 21 Jan 2020
Status: Offline
Points: 52 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ShK Quote  Post ReplyReply Direct Link To This Post Posted: 22 Jan 2020 at 7:03am
Thanks, exactly those I tried to find but no luck. This was the closest I found, but TBH I have no idea what those means:

Hot Plug Handling mode:
AO Mode
OS First (No Error Handling)
OS First (Error Handling - Not Implemented)
Firmware First
Auto
Back to Top
Ray62 View Drop Down
Groupie
Groupie
Avatar

Joined: 01 Jul 2018
Location: Germany, Berlin
Status: Offline
Points: 706 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Ray62 Quote  Post ReplyReply Direct Link To This Post Posted: 22 Jan 2020 at 6:53am
In the bios of the Asrock Fatal1ty X370 PG there is/was a global SATA Hot Plug switch under Advanced\Storage Configuration.

And in the bios of the MSI Creator TRX40 you can set hot plug for each port:

Also my MSI X570 MEG Ace has these options.

I don't know why Asrock does not offer the same.

I would create a ticket with a change request...
Asrock Fatal1ty X370 Professional Gaming Offline
Under test:
MSI X570_MEG_ACE | AMD Ryzen 9 3900X | Scythe Mugen5 | 2x16GB F4-3200C14D-32GTZ@3466 | ASUS GeForce GTX 1080 Ti FE
Back to Top
