TRX40 3970x single-core boost over 4.5GHz

 Post Reply Post Reply
Author
Message
ShK View Drop Down
Newbie
Newbie


Joined: 21 Jan 2020
Status: Offline
Points: 52
Post Options Post Options   Thanks (0) Thanks(0)   Quote ShK Quote  Post ReplyReply Direct Link To This Post Topic: TRX40 3970x single-core boost over 4.5GHz
    Posted: 31 Jan 2020 at 5:44am

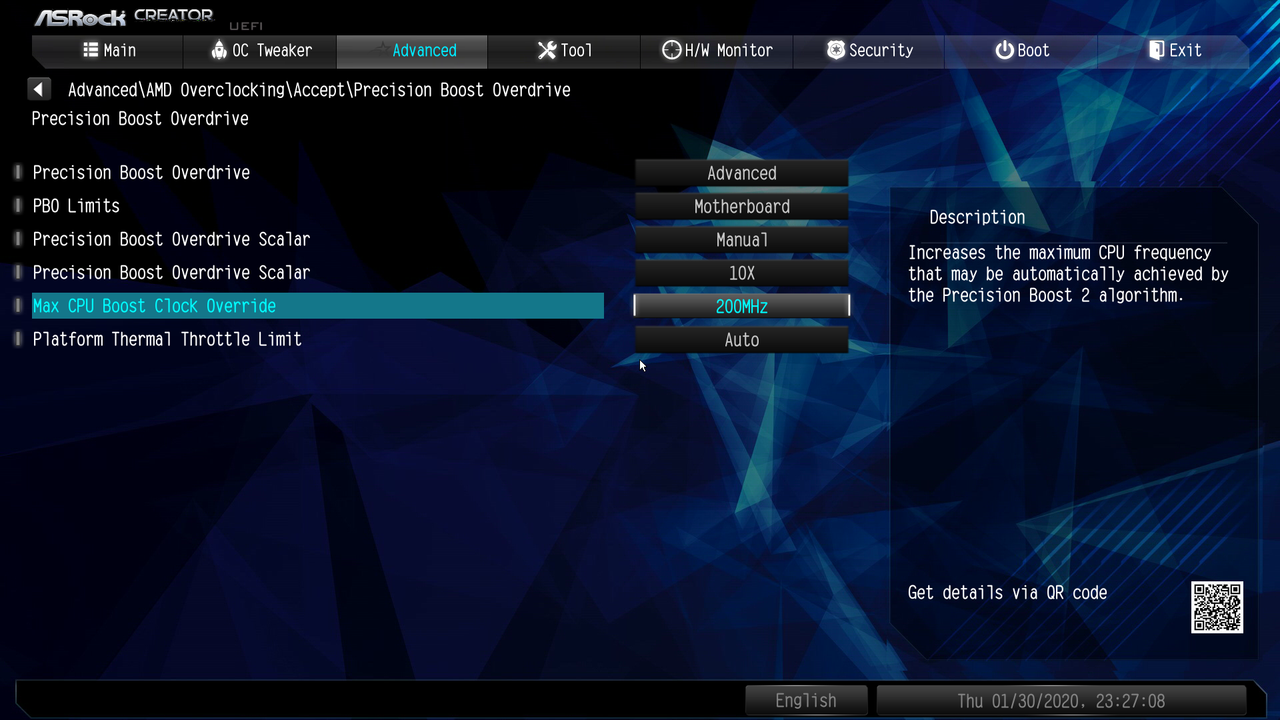

Is there way to set single-core precision boost limit over 4.5GHz?

Back to Top
ShK View Drop Down
Newbie
Newbie


Joined: 21 Jan 2020
Status: Offline
Points: 52
Post Options Post Options   Thanks (0) Thanks(0)   Quote ShK Quote  Post ReplyReply Direct Link To This Post Posted: 31 Jan 2020 at 6:18am

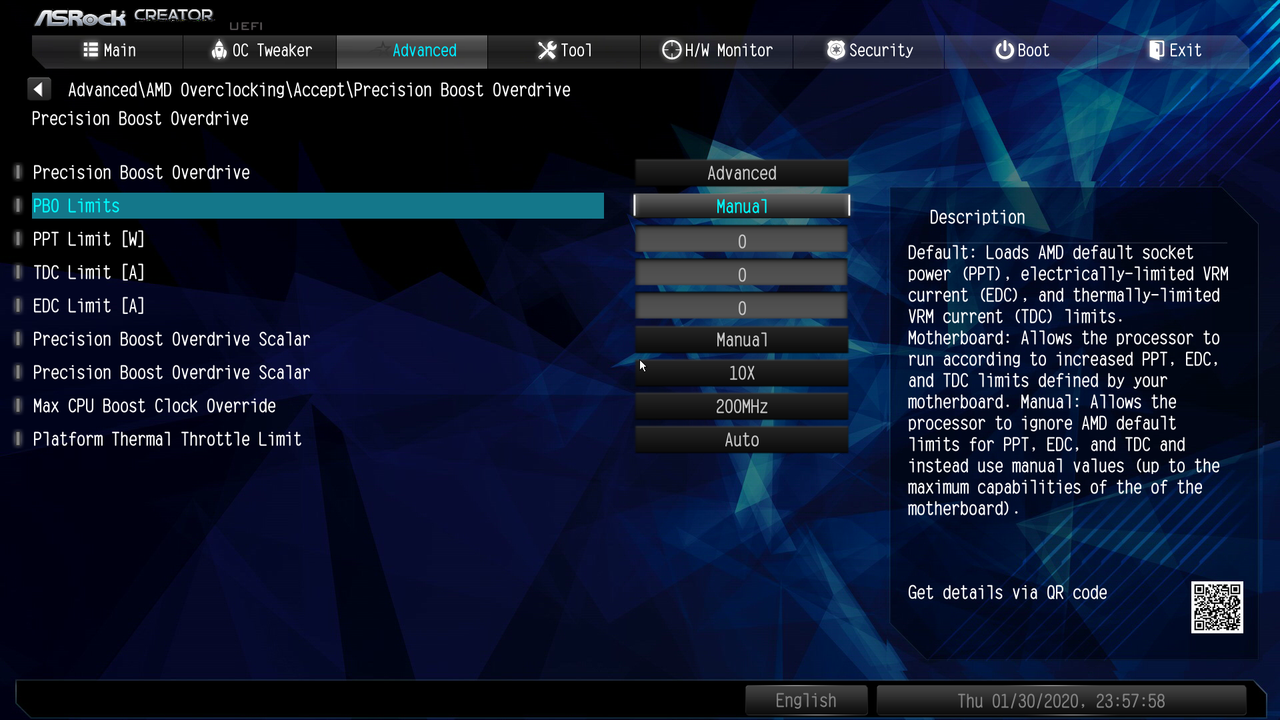

Which would be the optimal PPT, TDC and EDC limits for the TRX40 Creator 8-phase 90A power design, if I like to set them manually?

I have Corsair 1000W AX (CP-9020152-EU) PSU:
+3.3V: 25A
+5V: 25A
+12V: 83A
-12V: 0.3A
+5VSB: 3A

Back to Top
ShK View Drop Down
Newbie
Newbie


Joined: 21 Jan 2020
Status: Offline
Points: 52
Post Options Post Options   Thanks (0) Thanks(0)   Quote ShK Quote  Post ReplyReply Direct Link To This Post Posted: 31 Jan 2020 at 7:18am
Seems it does not hit even a near PBO limits with single-core boost. So, what else could be adjusted to get single-core boost over 4.5GHz?

Back to Top
ShK View Drop Down
Newbie
Newbie


Joined: 21 Jan 2020
Status: Offline
Points: 52
Post Options Post Options   Thanks (0) Thanks(0)   Quote ShK Quote  Post ReplyReply Direct Link To This Post Posted: 07 Feb 2020 at 6:38pm

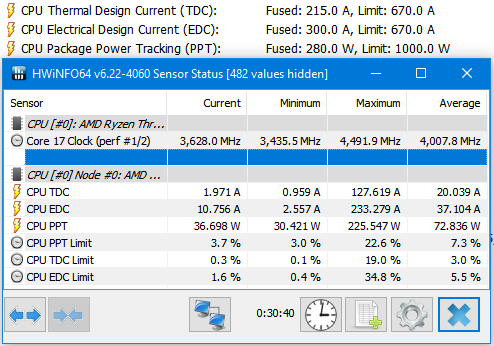

With the AUTO settings:



BIOS seems to set:

TDC: 620A
EDC: 670A
PPT: 1000W

But in the practice from those limits are used only:

TDC: 18.6%
EDC: 39.3%
PPT: 20.3%

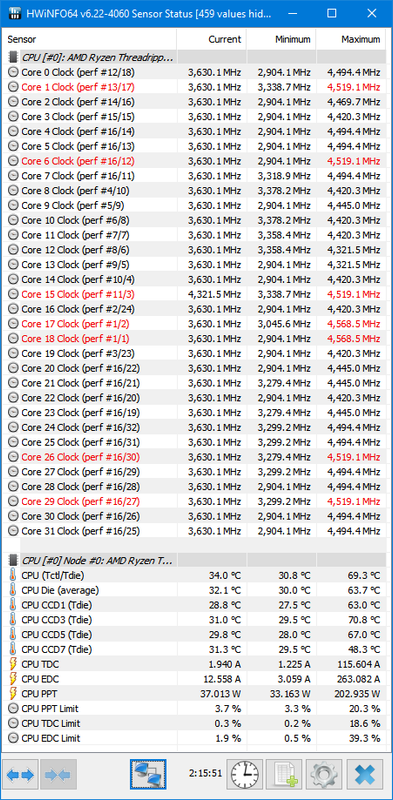

and the single-core boost keeps hitting to its 4.5GHz barrier:



With the water cooling single-thread application is barely raising the CPU temperature and PPT, TDC and EDC has still about 60% room before the limits.

So how to allow BIOS to OC single-core boost e.g. to 4.8GHz?
